Hillcrest G869
3 Bed
2 Bath
1,760 Sq. Ft.
66' x 26' 8"

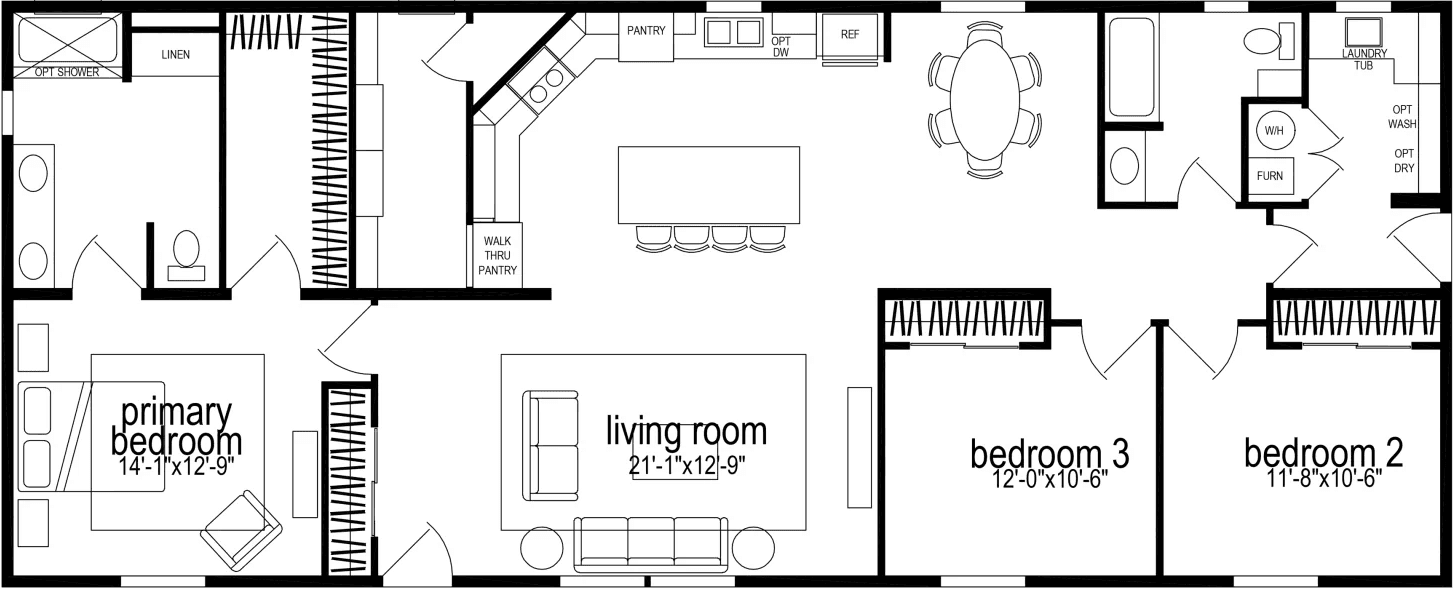

Floor Plan
Property map
Enter your address to check if this home fits on your property
Enter your property street address
Exterior & Construction
- 9' Sidewall Height
- Flat Ceilings Throughout
- 2x6 Exterior Walls
- 2x3 Interior Walls
- Nominal 3/12 Roof Pitch
- 30 # Roof Load
- 12” Eaves Entire Home
- 2x6 Floor Joist 16” O.C.
- OSB Tongue & Groove Floor Decking
- Perimeter Heat w/Toe Kick Registers
- Detachable Hitch
- Insulation R 40-21-33
- 22’ Dormer Front Door Side Per Floor Plan
- 12' Dormer Front Door Side Per Floor Plan
- Lap Siding under Vertical Front Door Side
- Board & Batt in Dormer Peak
- 5/4”x 4” Window Trim Front Door Side
- 30-Year Class “A” Fire Rated Shingles
- 36" 6-Panel Fiberglass Front Door w/Deadbolt
- 36" 9-Lite Fiberglass Rear Door w/Deadbolt
- Low “E” Insulated Vinyl Windows
- 9' Sidewall Height
- Flat Ceilings Throughout
- 2x6 Exterior Walls
- 2x3 Interior Walls
- Nominal 3/12 Roof Pitch
- 30 # Roof Load
- 12” Eaves Entire Home
- 2x6 Floor Joist 16” O.C.
- OSB Tongue & Groove Floor Decking
- Perimeter Heat w/Toe Kick Registers
- Detachable Hitch
- Insulation R 40-21-33
- 22’ Dormer Front Door Side Per Floor Plan
- 12' Dormer Front Door Side Per Floor Plan
- Lap Siding under Vertical Front Door Side
- Board & Batt in Dormer Peak
- 5/4”x 4” Window Trim Front Door Side
- 30-Year Class “A” Fire Rated Shingles
- 36" 6-Panel Fiberglass Front Door w/Deadbolt
- 36" 9-Lite Fiberglass Rear Door w/Deadbolt
- Low “E” Insulated Vinyl Windows
Kitchen
- Tall Overhead Cabinets
- CS96C Cabinet System
- Shaker Style Cabinet Doors
- Hardwood Cabinet w/Hidden Hinges
- Drawer Over Door Cabinet Construction
- Full Extension Drawer System w/Ball Bearing Guides
- Refer Overhead Cabinet
- Crown Molding on Overhead Cabinets
- Adjustable Overhead Shelves
- Fixed Shelf in Base Cabinet
- 4" Ceramic Tile Backsplash
- HPL Countertop and Selfedge
- 8" Deep Stainless Steel Sink
- Single Lever Kitchen Faucet
- 18 Cu. Ft. Frost Free Refrigerator
- 30" Deluxe Range w/Glass, Clock & Timer
- 30” Vented Range Hood
- Tall Overhead Cabinets
- CS96C Cabinet System
- Shaker Style Cabinet Doors
- Hardwood Cabinet w/Hidden Hinges
- Drawer Over Door Cabinet Construction
- Full Extension Drawer System w/Ball Bearing Guides
- Refer Overhead Cabinet
- Crown Molding on Overhead Cabinets
- Adjustable Overhead Shelves
- Fixed Shelf in Base Cabinet
- 4" Ceramic Tile Backsplash
- HPL Countertop and Selfedge
- 8" Deep Stainless Steel Sink
- Single Lever Kitchen Faucet
- 18 Cu. Ft. Frost Free Refrigerator
- 30" Deluxe Range w/Glass, Clock & Timer
- 30” Vented Range Hood
Bathroom
- Shaker Style Cabinet Doors
- Hardwood Cabinets w/Hidden Hinges
- Full Extension Drawer System w/Ball Bearing Guides
- 60” 1 Piece Fiberglass Tub/Shower Combo
- 4” Formica Backsplash w/Formica Edge
- China Lavy Sinks
- Metal Single Lever Faucets
- Elongated China Commodes
- Power Vent Fan with Light
- Towel Bar
- Tissue Holder
- 24” x 36” Mirror w/Trim
- Tulip Light over Mirror
- Shaker Style Cabinet Doors
- Hardwood Cabinets w/Hidden Hinges
- Full Extension Drawer System w/Ball Bearing Guides
- 60” 1 Piece Fiberglass Tub/Shower Combo
- 4” Formica Backsplash w/Formica Edge
- China Lavy Sinks
- Metal Single Lever Faucets
- Elongated China Commodes
- Power Vent Fan with Light
- Towel Bar
- Tissue Holder
- 24” x 36” Mirror w/Trim
- Tulip Light over Mirror
Interior
- Linoleum Entry
- Shaw® Takeaway Carpet w/Rebond Pad
- Tape & Texture Interior w/Square Corners
- 2 ¼” Base Molding
- 3” Flat Ceiling Crown
- Metal Mini Blinds
- Wood Cornice Valances (N/A with Craftsman Trim)
- White Wood Window Casing and Trim
- T-Panel Doors
- Lever Handles
- 36” Passage Doors per Plan
- Linoleum Entry
- Shaw® Takeaway Carpet w/Rebond Pad
- Tape & Texture Interior w/Square Corners
- 2 ¼” Base Molding
- 3” Flat Ceiling Crown
- Metal Mini Blinds
- Wood Cornice Valances (N/A with Craftsman Trim)
- White Wood Window Casing and Trim
- T-Panel Doors
- Lever Handles
- 36” Passage Doors per Plan
Images of homes are solely for illustrative purposes and should not be relied upon. Images may not accurately represent the actual condition of a home as constructed, and may contain options which are not standard on all homes.
Hillcrest G869
$163K - $199K
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,760 sq. ft.
66' x 26' 8"
Hillcrest G869
$163K - $199K
3 bedrooms (sleeps 3-6)
2 full bathrooms
1,760 sq. ft.
66' x 26' 8"
Hillcrest standard features
Construction
- 9' Sidewall Height
- Flat Ceilings Throughout
- 2x6 Exterior Walls
- 2x3 Interior Walls
- Nominal 3/12 Roof Pitch
- 30 # Roof Load
- 12” Eaves Entire Home
- 2x6 Floor Joist 16” O.C.
- OSB Tongue & Groove Floor Decking
- Perimeter Heat w/Toe Kick Registers
- Detachable Hitch
- Insulation R 40-21-33
- 9' Sidewall Height
- Flat Ceilings Throughout
- 2x6 Exterior Walls
- 2x3 Interior Walls
- Nominal 3/12 Roof Pitch
- 30 # Roof Load
- 12” Eaves Entire Home
- 2x6 Floor Joist 16” O.C.
- OSB Tongue & Groove Floor Decking
- Perimeter Heat w/Toe Kick Registers
- Detachable Hitch
- Insulation R 40-21-33
Exterior
- 22’ Dormer Front Door Side Per Floor Plan
- 12' Dormer Front Door Side Per Floor Plan
- Lap Siding under Vertical Front Door Side
- Board & Batt in Dormer Peak
- 5/4”x 4” Window Trim Front Door Side
- 30-Year Class “A” Fire Rated Shingles
- 36" 6-Panel Fiberglass Front Door w/Deadbolt
- 36" 9-Lite Fiberglass Rear Door w/Deadbolt
- Low “E” Insulated Vinyl Windows
- 22’ Dormer Front Door Side Per Floor Plan
- 12' Dormer Front Door Side Per Floor Plan
- Lap Siding under Vertical Front Door Side
- Board & Batt in Dormer Peak
- 5/4”x 4” Window Trim Front Door Side
- 30-Year Class “A” Fire Rated Shingles
- 36" 6-Panel Fiberglass Front Door w/Deadbolt
- 36" 9-Lite Fiberglass Rear Door w/Deadbolt
- Low “E” Insulated Vinyl Windows
Interior
- Linoleum Entry
- Shaw® Takeaway Carpet w/Rebond Pad
- Tape & Texture Interior w/Square Corners
- 2 ¼” Base Molding
- 3” Flat Ceiling Crown
- Metal Mini Blinds
- Wood Cornice Valances (N/A with Craftsman Trim)
- White Wood Window Casing and Trim
- T-Panel Doors
- Lever Handles
- 36” Passage Doors per Plan
- Linoleum Entry
- Shaw® Takeaway Carpet w/Rebond Pad
- Tape & Texture Interior w/Square Corners
- 2 ¼” Base Molding
- 3” Flat Ceiling Crown
- Metal Mini Blinds
- Wood Cornice Valances (N/A with Craftsman Trim)
- White Wood Window Casing and Trim
- T-Panel Doors
- Lever Handles
- 36” Passage Doors per Plan
Mechanical
- Forced Air Electric Furnace
- WI-FI Thermostat
- 50-Gallon Electric Water Heater w/Dual Element
- Whole House Water Shutoff
- Insulated Fiberglass Heat Ducts
- Whole House Water Shutoff at Main
- Shut Off Valves T/O
- Plumb for Washer and Wire for Dryer
- Wire Shelving above Washer and Dryer
- Whole House Fan
- Residential PEX Water Lines
- 200 AMP Service
- Recessed Lights Throughout
- Exterior Recept w/GFI Breaker
- Rocker Switches & Decorator Recepts
- Paddle Fan w/Light in Living Room
- Smoke Detectors w/CO
- Exterior Light at All Exterior Doors
- Forced Air Electric Furnace
- WI-FI Thermostat
- 50-Gallon Electric Water Heater w/Dual Element
- Whole House Water Shutoff
- Insulated Fiberglass Heat Ducts
- Whole House Water Shutoff at Main
- Shut Off Valves T/O
- Plumb for Washer and Wire for Dryer
- Wire Shelving above Washer and Dryer
- Whole House Fan
- Residential PEX Water Lines
- 200 AMP Service
- Recessed Lights Throughout
- Exterior Recept w/GFI Breaker
- Rocker Switches & Decorator Recepts
- Paddle Fan w/Light in Living Room
- Smoke Detectors w/CO
- Exterior Light at All Exterior Doors
Kitchen
- Tall Overhead Cabinets
- CS96C Cabinet System
- Shaker Style Cabinet Doors
- Hardwood Cabinet w/Hidden Hinges
- Drawer Over Door Cabinet Construction
- Full Extension Drawer System w/Ball Bearing Guides
- Refer Overhead Cabinet
- Crown Molding on Overhead Cabinets
- Adjustable Overhead Shelves
- Fixed Shelf in Base Cabinet
- 4" Ceramic Tile Backsplash
- HPL Countertop and Selfedge
- 8" Deep Stainless Steel Sink
- Single Lever Kitchen Faucet
- 18 Cu. Ft. Frost Free Refrigerator
- 30" Deluxe Range w/Glass, Clock & Timer
- 30” Vented Range Hood
- Tall Overhead Cabinets
- CS96C Cabinet System
- Shaker Style Cabinet Doors
- Hardwood Cabinet w/Hidden Hinges
- Drawer Over Door Cabinet Construction
- Full Extension Drawer System w/Ball Bearing Guides
- Refer Overhead Cabinet
- Crown Molding on Overhead Cabinets
- Adjustable Overhead Shelves
- Fixed Shelf in Base Cabinet
- 4" Ceramic Tile Backsplash
- HPL Countertop and Selfedge
- 8" Deep Stainless Steel Sink
- Single Lever Kitchen Faucet
- 18 Cu. Ft. Frost Free Refrigerator
- 30" Deluxe Range w/Glass, Clock & Timer
- 30” Vented Range Hood
Bathroom
- Shaker Style Cabinet Doors
- Hardwood Cabinets w/Hidden Hinges
- Full Extension Drawer System w/Ball Bearing Guides
- 60” 1 Piece Fiberglass Tub/Shower Combo
- 4” Formica Backsplash w/Formica Edge
- China Lavy Sinks
- Metal Single Lever Faucets
- Elongated China Commodes
- Power Vent Fan with Light
- Towel Bar
- Tissue Holder
- 24” x 36” Mirror w/Trim
- Tulip Light over Mirror
- Shaker Style Cabinet Doors
- Hardwood Cabinets w/Hidden Hinges
- Full Extension Drawer System w/Ball Bearing Guides
- 60” 1 Piece Fiberglass Tub/Shower Combo
- 4” Formica Backsplash w/Formica Edge
- China Lavy Sinks
- Metal Single Lever Faucets
- Elongated China Commodes
- Power Vent Fan with Light
- Towel Bar
- Tissue Holder
- 24” x 36” Mirror w/Trim
- Tulip Light over Mirror
